Product Description

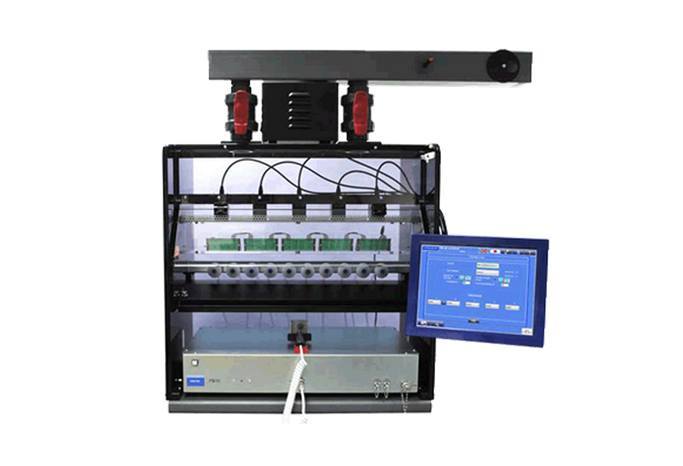

The Cerulean FB10 has been specifically designed to assess the free burn characteristics of cigarettes under controlled air flows. It comprises of a ten channel smoking bar enclosed in a ISO3308 compliant hood and is suitable for a range of free burn tests. The hood can be easily connected to an extraction system and the fan and baffle arrangement allows precise control of the air flow during free burn testing. The FB10 utilises standard.
Cambridge filter holders and lighting is via a hand held wand with a coil lighter. Each cigarette is lit with a single 35ml ISO puff.
Share it:
A camera system measures the progress of the coal as it burns allowing not only for time between burn points to be known but also for the burn profile to be captured. The user can set up the start and end points of the burn from the user-friendly Graphical User Interface and data from all rods are stored in the ODBC compliant database. Multiple regimes can be stored and data for each run can be added in terms of the batch ID, description, user ID, ambient temperature, ambient humidity, profile type, rod weight, burn distance and start burn profile distance from rod end.
Connection to external systems such as a LIMS is possible through the system PC and with the addition of third party software (not supplied).
