Boulder Counter

Airbone Particle Counters

Get A Quote

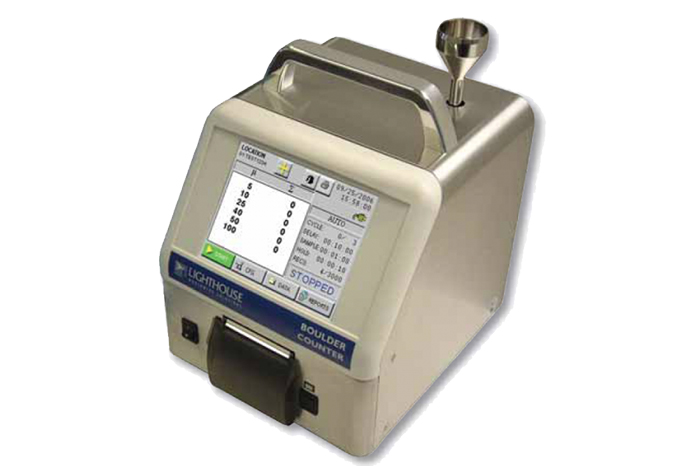

Boulder Counter

With its 5.7-inch (14.47 cm) color touch screen, the BOULDER COUNTER is easy to configure and operate. It can store 3,000 records of particle count data from 6 channels and environmental data from up to 4 sensors (4-20 mA). All data can be quickly and reliably transferred to a computer or printed on its built-in thermal printer.

Demonstrating its versatility, the BOULDER COUNTER can be used as a portable instrument or integrated into a facility monitoring system.

Designed and built by Lighthouse Worldwide Solutions, a name you can trust.

New Easy Loading
Thermal Printer
User Removable
Rechargeable
Li-Ion Battery
Zoom Screen
Functionality
User Friendly
Configuration
Alpha Numeric
Location Labels
Multiple
Cleanroom
Standard Reports
via Printer

  • 5 – 100 μm @ 1.0 CFM (28.3 LPM)
  • Simultaneous Display of up to 6 Particle Sizes
  • Meets JIS Standards
  • 5.7-inch (14.47 cm) Color Touch Screen
  • Removable, Rechargeable Li-Ion Battery
  • 3,000-sample Data Storage Memory
  • Up to 4 Environmental Sensors (4-20 mA)
  • 200 Alphanumeric Location Labels
  • Thermal Printer / User Definable Printouts
  • Data Reported in Normalized Counts: FS-209E, and ISO-14644-1 Formats
  • Easily Configured Interface with Zoom Capability
  • Integrated Alarm and External Alarm Connection
  • Data Easily Transferred to a Computer

  • 2 Year Warranty
  • Easy-to-Read Display
  • User-Friendly Interface
  • International Support
  • Low Cost of Ownership
  • Small Footprint

  • Aerospace Flight and Space Hardware Manufacture
  • Aerospace Precision Engine Manufacture
  • Automobile
  • Flat Panel Display Manufacturing
  • Medical Device Manufacturing
  • Automotive Precision Machining and Paint

Specifications

Specifications

Size Range: 5 – 100μm
Channel Sizes: Standard: 5, 10, 25, 40, 50, 100μm
Counting Efficiency: 50% @ 5.0μm; 100% for particles > 7.5μm (per JIS)
Flow Rate: 1.0 CFM (28.3 LPM)
Laser Source: Laser Diode
Zero Count Level:
Concentration Limits: 500,000 Particles/ft3 @5% Coincidence Loss
Calibration: NIST Traceable
Count Modes: Automatic, Manual, Beep, Concentration, Cumulative/Differential, Real-time (with LMSNet, LMS Express RT)
Data Storage: 3,000 Sample Records (Rotating Buffer) which include particle and environmental data, locations and times
Communication Modes: RS-232 via RJ-45 to PC, RS-485/MODBUS
Supporting Software: LMS XChange, LMS Express, LMS Express RT; LMSNet
Environmental Sensors: Optional (up to 4): Temperature/Relative Humidity, Air Velocity, Differential Pressure, or others
Touch Screen Display: 5.7” (14.47 cm) Color, 320×240 pixels
Printer: Built-in Thermal Printer
Reports: Normalized Counts, FS-209E, ISO-14644-1
Alarm: Integrated Alarm, External Alarm Connector; Alarms on Counts or Low Battery
Enclosure: Stainless Steel
Sample Output: Internally Filtered to HEPA Standards (>99.997% @ 0.3μm)
Vacuum Source: Internal Pump, Automatic Flow Control
Power: 100-240 VAC, 50-60 Hz
Battery: Li-Ion, Removable & Rechargeable
Dimensions: 9.88” (l) x 8.0” (w) x 10.16” (h) [25.1 x 20.32 x 25.81 cm]
Weight: With Battery: 14.9 lbs (6.8 kg) Without Battery: 12.95 lbs (5.9 kg)

Conditions

Conditions

Operating: 50°F to 104°F (10°C to 40°C) / 20% to 95% non-condensing
Storage: 14°F to 122°F (-10°C to 50°C) / Up to 98% non-condensing

Accessories

Accessories

Included: Operating Manual on CD; Isokinetic Sample Probe; Purge Filter; Removable, Rechargeable Li-Ion Battery; Power Cable and Spare Fuse; LMS XChange Software; Printer; Thermal Printer Paper
Optional: Printed Operating Manual; Network Adapter; Wireless Network Adapter; Carrying Case with Wheels; Cleanroom Cart; Temperature/Relative Humidity Probe; Air Velocity Probe; Differential Pressure Probe; High Pressure Diffuser;
Spare Li-Ion Battery; External Battery Charger; LMS Express, Express RT Software; LMSNet Software
