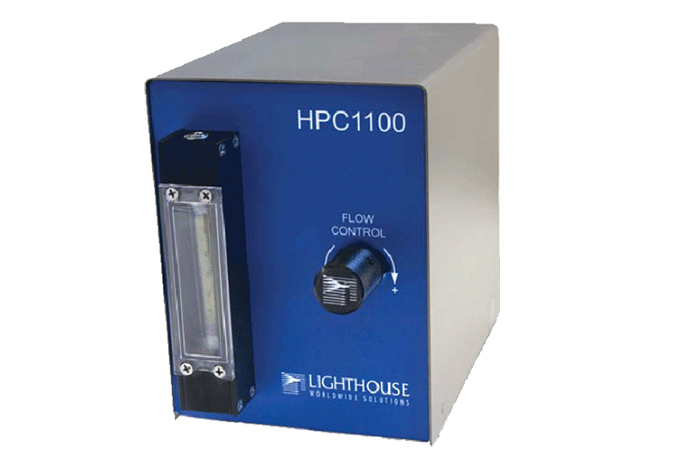

HPC 1100

Accessories Portable

Get A Quote
Handheld 2016

The HPC 1100’s Stainless Steel design is rugged, reliable and requires almost no routine maintenance and never requires calibration. During normal operation, no inert gas is wasted – 100% of the gas supplied is used for the sampling process.

  • Process Qualification
  • Semiconductor Process Monitoring
  • Flat Panel Process Monitoring
  • Process Trend Analysis

  • Supports 0.1μm at 1 CFM
  • May be Used with Any Inert Gas
  • Easy Set Up
  • Simple Installation
  • Front-mounted Flow Gauge
  • Intuitive User Control
  • Quiet Operation
  • Fast Purge and Cleanup
  • VCR Fittings Internally and Externally
  • Stainless Steel Construction

  • Zero Gas Waste During Normal Operation
  • Output at Near Atmospheric Pressure
  • Low Noise
  • Small Footprint
  • Easy System Integration
  • 2 Year Warranty International Sales and Service Support
  • Low Cost of Ownership

Specifications

Specifications

Particle Size Range: 0.1μm or greater
Flow Rate: 1.0 CFM
Output Pressure: Near Atmospheric
Input Pressure: 30-150 psi
Compatible Gases: Nitrogen, Argon, Helium, CDA
Operating Noise Level:
Enclosure: Stainless Steel
Wetted Materials: 316L Stainless Steel, Hastelloy, PCTFE
Dimensions: 5.61” (w) x 7.57” (h) x 10.32” (d) [14.22 x 19.30 x 26.21 cm]
Weight: 6 lbs (2.7 kg)

Accessories

Accessories

Included: Sample Tubing; VCR seals; Nylon Nut and Ferrule Set
Optional: Additional Sample Tubing; 1/4-inch Female Coupling Body Fitting; Welded Stainless Steel In-Line 1/4-inch Filter (0.5μm, 2μm, 7μm, 15μm)
