Remote 1100LD

Real Time/Online Applications

Get A Quote

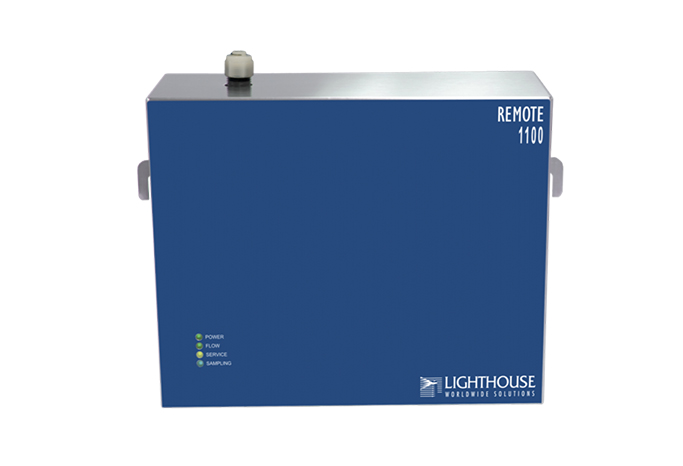

Remote 1100LD

Designed with reliability and quality in mind, the REMOTE 1100LD features Lighthouse’s long-life laser diode technology that provides higher concentration limits (see reverse side), a better signal to noise ratio and requires less routine maintenance than conventional HeNe laser-based particle counters (no routine laser tube replacements or optics cleaning).

The REMOTE 1100LD provides continuous real-time data collection at a cost-effective price per point. Very simple to integrate with large facility monitoring and management systems, the REMOTE 1100LDcan transfer up to 4 of simultaneous particle count data using Pulse Output.

  • 0.10 – 1.0 μm Sensitivity
  • 1.0 CFM (28.3 LPM) Flow Rate
  • Up to 4 Channels of Simultaneous Data
  • World’s Smallest 1.0 CFM 0.10 µm counter
  • Meets ISO 21501-4 Standards
  • Long Life Laser Diode
  • Small Footprint
  • Status Indicators
  • Pulse Output
  • Stainless Steel Enclosure
  • Interfaces to Facility Monitoring Systems
  • Uses External Vacuum Source
  • Designed for Reliability
  • Designed to Ensure 21 CFR Part 11 Compliance when used with Additional Software
  • No Routine Laser Tube Replacements
  • No Routine Laser Optics Cleaning

  • 2 Year Warranty
  • Cost Effective Price per Point
  • Proven Data Integrity
  • Provides Continuous Real-Time Data
  • Reduced Maintenance costs over HeNe
  • Easy Systems Integration
  • International Support
  • Low Cost of Ownership

Specifications

Specifications

Size Range: 0.10 – 1.0 μm
Channel Sizes: 2 Channels: 0.1, 0.3 μm
4 Channels: 0.1, 0.2, 0.3, 0.5 μm
Communication Modes: Pulse Output via Single DB-15 Connector
Counting Efficiency: 50% @ 0.1 μm; 100% for particles > 0.15 μm (per JIS)
Flow Rate: 1.0 CFM (28.3 LPM)
Laser Source: Long Life Laser Diode
Zero Count Level:
Concentration Limits: 500,000 Particles / ft3 (17,150,000 / m3) @ 5% Coincidence Loss, per ISO 21501-4
Calibration: NIST Traceable, per ISO 21501-4
Vacuum Requirements: External Vacuum required, nominal 1.0 CFM >18″ (45.72 cm) of Hg
Led Indicators: Power, Flow, Service, Sampling
Supporting Software: Lighthouse Monitoring System, LMS Express, LMS Express RT, LMS Express RT Plus
Enclosure: Stainless steel
Power: 24 VDC
Dimensions: 10.5” (w) x 7.65” (h) x 3.35” (d) [26.67 x 19.43 x 8.51 cm]
Weight: 7.0 lb (3.18 kg)

Conditions

Conditions

Operating: 50°F to 104°F (10°C to 40°C) / 20% to 95% non-condensing
Storage: 14°F to 122°F (-10°C to 50°C) / Up to 98% non-condensing

Accessories

Accessories

Included: Operating Manual, Purge Filter, Power Supply, Power Cord
Optional: Isokinetic Sampling Probe, Sample Tubing, Cabling
